MAX ATF®

MULTI-VEHICLE AUTOMATIC TRANSMISSION FLUID

Royal Purple® Max ATF is a full synthetic, multi-vehicle, high performance, long life, automatic transmission fluid. Max ATF meets the viscosity and performance requirements of late model automatic transmission fluid specifications.

Superior Synthetic Performance Features and Benefits

  • Global OEM coverage- suitable for use in 99.9% of all light-duty planetary gear transmissions on the road today
  • Delivers step-out performance proven in bench and/or field trials, in millions of transmissions currently on the road.
  • Special blend of additives deliver competitive advantages:
    • Maximizes fuel economy
    • Smoother shifting
    • Dramatically reduces heat and wear, extending transmission life
    • Exceptional Anti-Shudder protection
    • Greater torque hold capacity to prevent clutch slippage
    • Also compatible in hybrid vehicles

Best performance and protection is had with a complete fluid change to Max ATF, but Max ATF is completely compatible with OEM transmission fluid specifications (listed below), so partial fluid changes and fluid level top-off are recommended as well.

OEM transmission fluid specifications

  • Aisin ATF-0WS, AW-1, JWS 3324
  • Audi G052533, G055005A2, G055162A2/A6, G055540A2
  • BMW ATF 3+, ATF 6, L12108, M1375.4, M1375.6
  • Chrysler/FCA AW-1, SP-IV, 8&9 Speed ATF, 68218925AA/AB
  • GM AW-1, DEXRON® VI; DEXRON® HP
  • Esso LT 71141
  • Honda DW-1, ATF Type 3.0 & Type 3.1
  • Hyundai SP-IV, SP-IV-M1, SPH-IV, SP-IV-RR
  • JWS 3309, JWS 3314, JWS 3317
  • Kia SP-IV, SP-IV-M1, SPH-IV, SP-IV-RR
  • Isuzu SCS
  • Jaguar 02JDE 26444, Fluid 8432, SCS
  • JAMA JASO M315, Class-1A-LV
  • Land Rover LR022460:LV, LR023288/023289
  • Maserati Oil No. 231603
  • Mazda ATF-FZ
  • Mitsubishi Dia Queen ATF-MA1, Dia Queen ATF-PA, SP-IV
  • Nissan Matic-S, Matic-W
  • Porsche P/N 000 043 304 00
  • Saab P/N 93 165 147
  • Subaru ATF-WS
  • Suzuki 3324, ATF-WS
  • Toyota ATF-FZ, ATF WS, JWS 3324
  • Volvo P/N 31 256 774, P/N 31 256 775
  • VW G052533, G055005A2, G055162A2/A6, G055540A2
  • ZF LifeGuard Fluid 6, LifeGuard Fluid 8, LifeGuard Fluid 9
Please Note: Max ATF is NOT suitable for use in CVTs, DCTs, or automatic transmissions that specify the use of Ford Type F ATF
Dexron® is a registered trademark of General Motors Corporation.

Available Sizes

Available SizesPart NumberItem Number

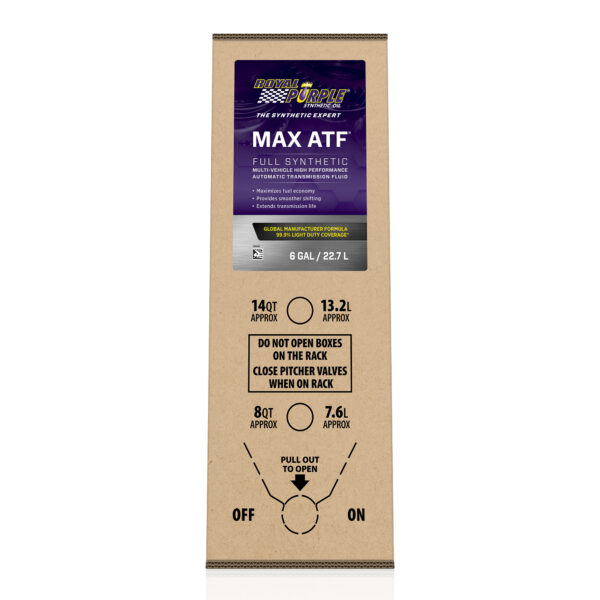

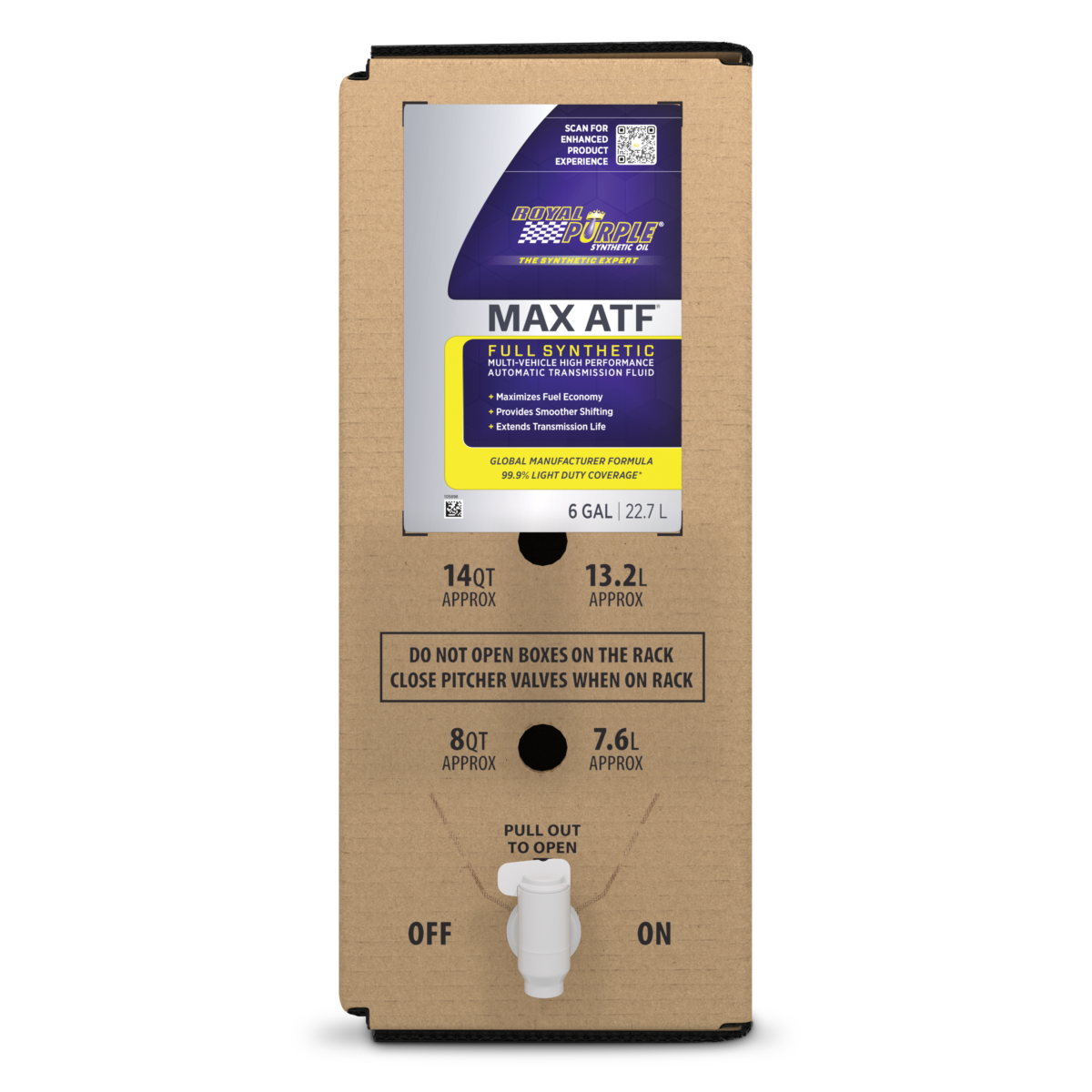

5-Gal. Pail05320301143175017
6 x 1-Qt Case06320

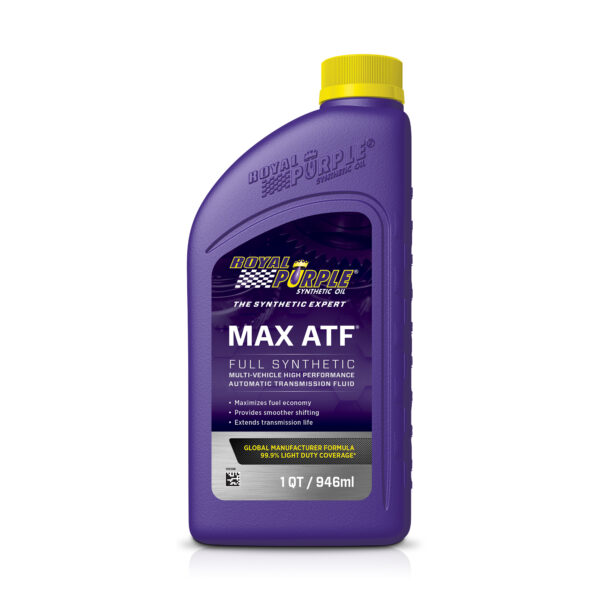

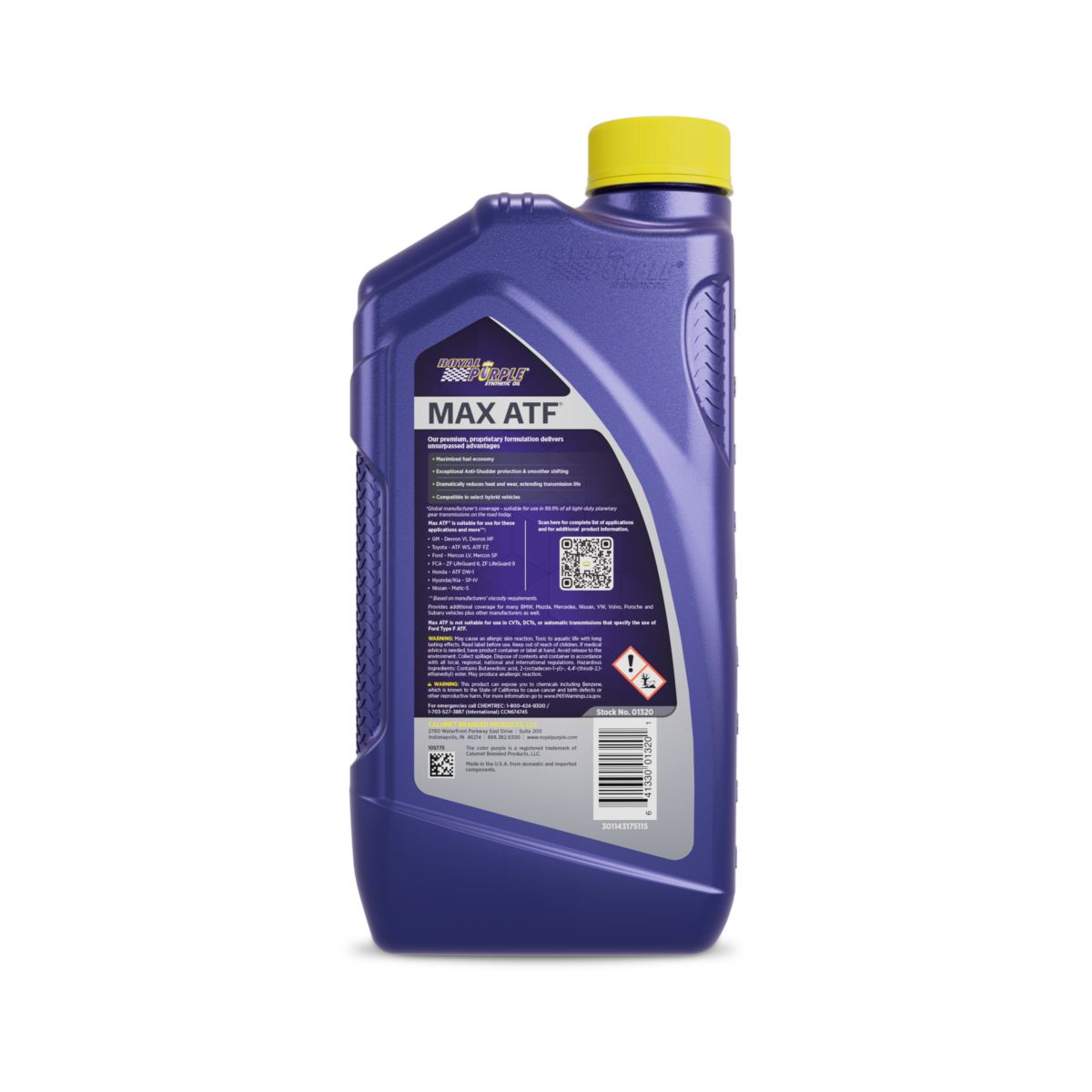

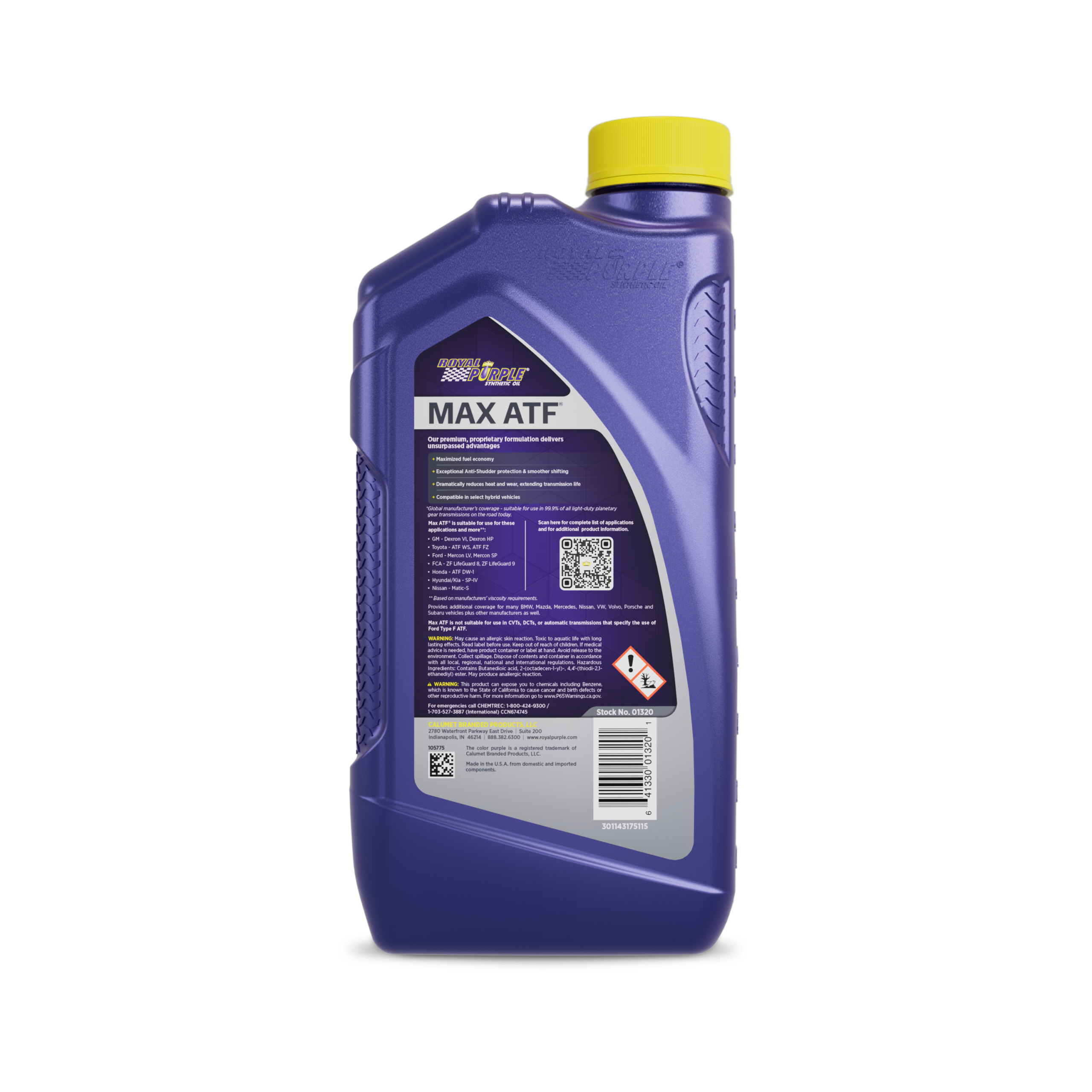

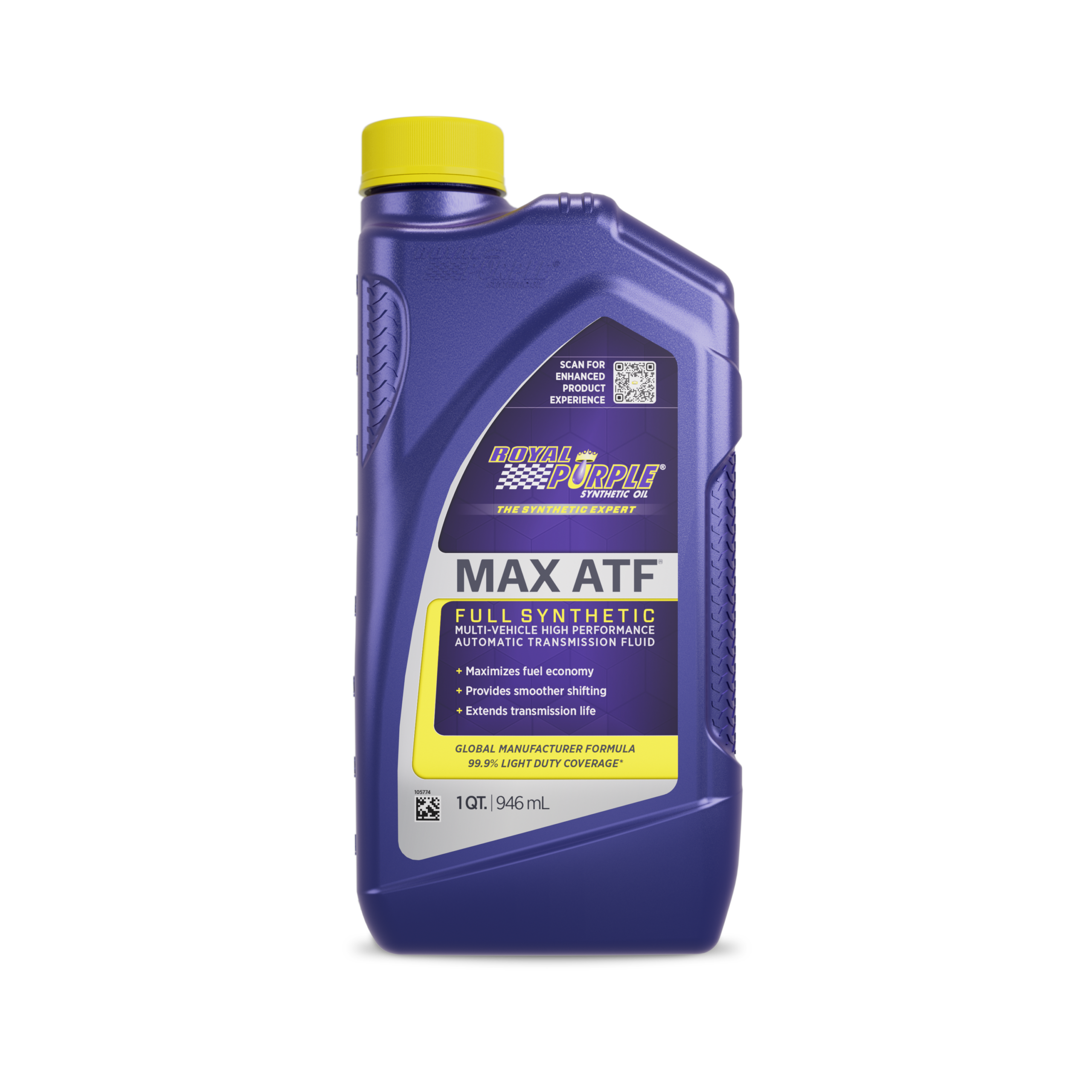

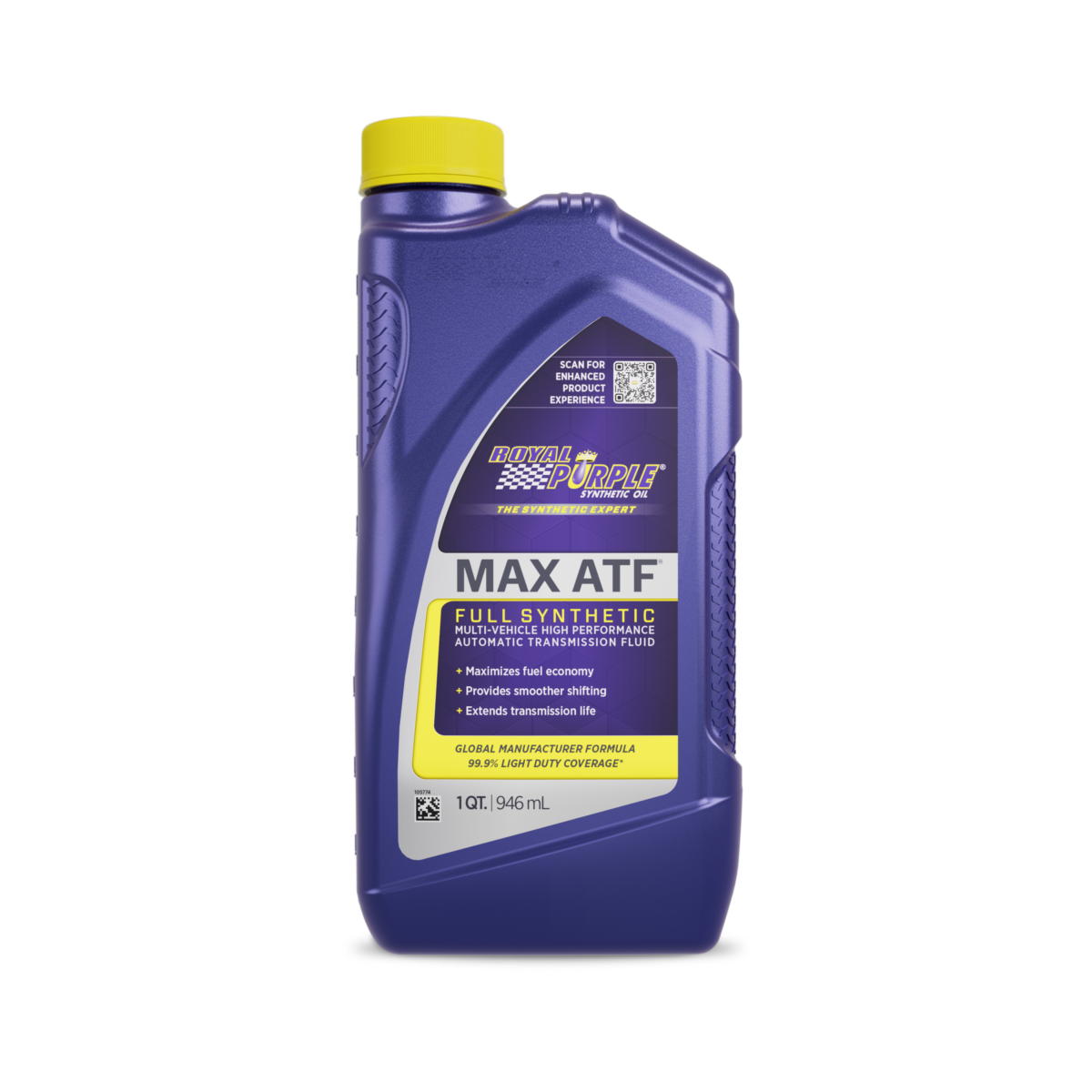

1-Qt. Bottle01320301143175115

PDS/SDS

PDS Max ATF SDS Max ATF

Proof of Performance

ANTI-SHUDDER - PROOF OF PERFORMANCE

Slipping Clutch
Torque

Provides exceptional anti-shudder durability

  • Equivalent to Toyota T-IV ASD performance requirements

ATF friction modifiers must allow the torque converter clutch to slip controllably without sticking

  • Prevents noticeable shuddering

The Anti-Shudder Durability (ASD) test measures the ability of an ATF to maintain performance over time

  • Test run at three temperatures with two sliding speeds
  • Toyota T-111 performance is used as the JASO minimum reference

GREATER TORQUE HOLDING

(JASO M348)

Greater Torque

SMOOTH SHIFT DURABILITY - PROOF OF PERFORMANCE

Greater Torque
